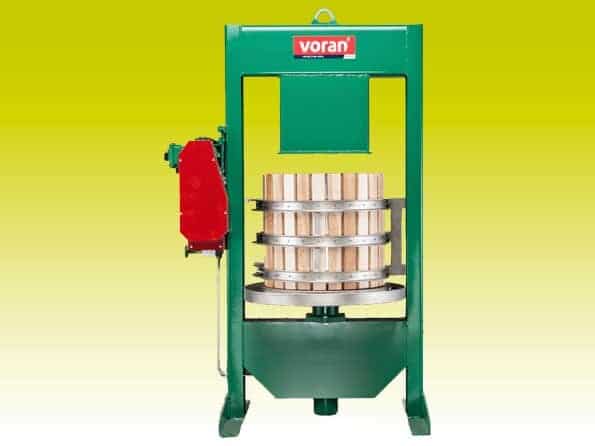

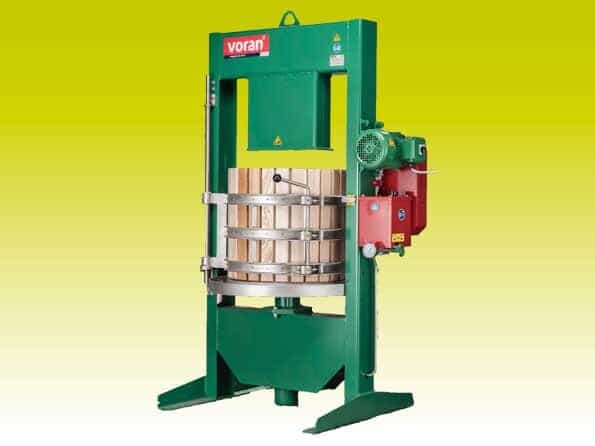

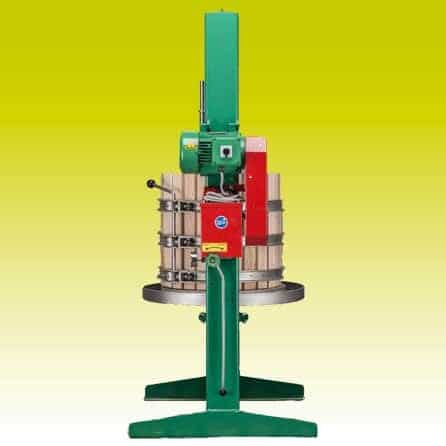

Basket press 100K

300 kg/h. Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

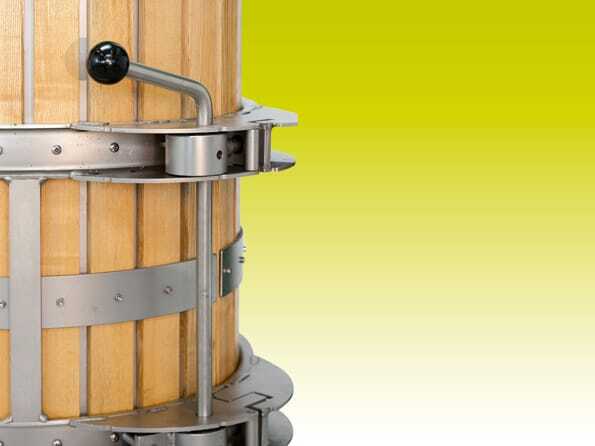

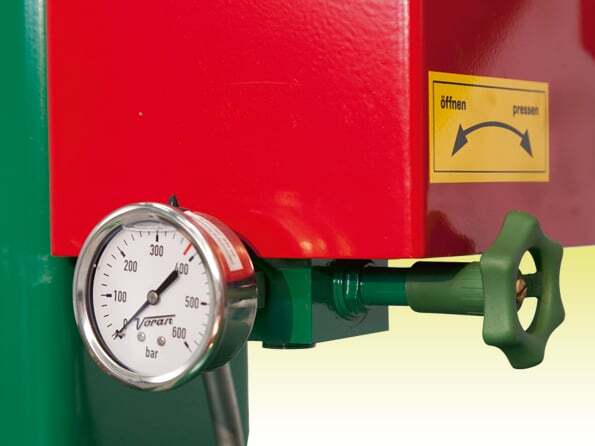

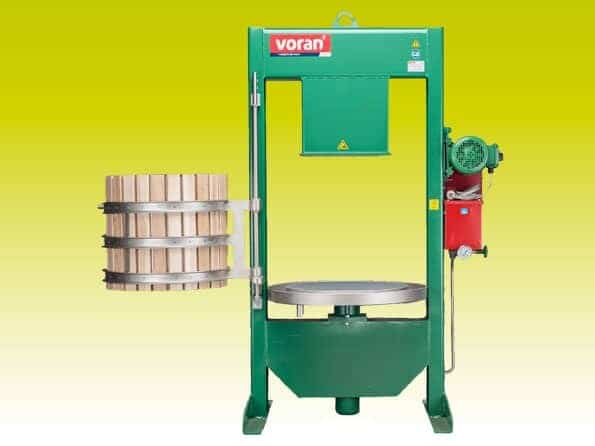

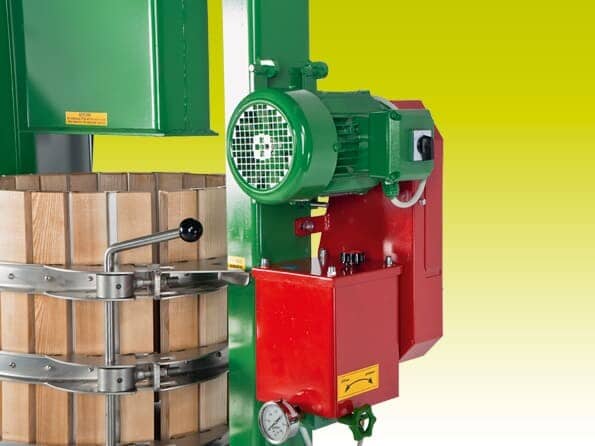

Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 300 kg/h
Motor rating 1,5 (2,0) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1180 mm
Width 800 mm
Height 1910 mm
Discharge height 1151 mm
Weight 342 kg
Material Basket and juice basin in 1.4301 / AISI 304
Press force 24,2 to
Press pressure 380 bar
Juice yield 75 %
Connection for juice outlet ø30mm
Height juice outlet 525 mm
Height pomace ejector 640 mm

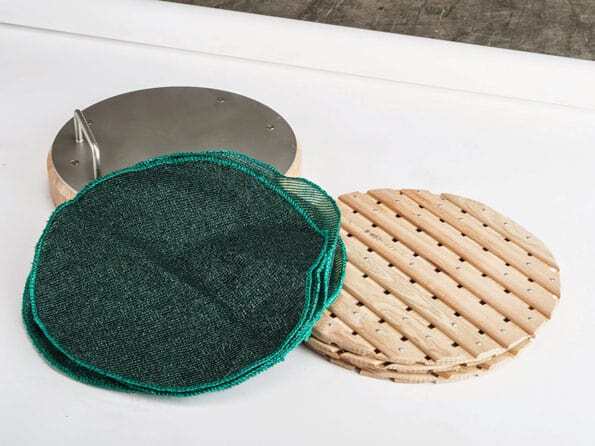

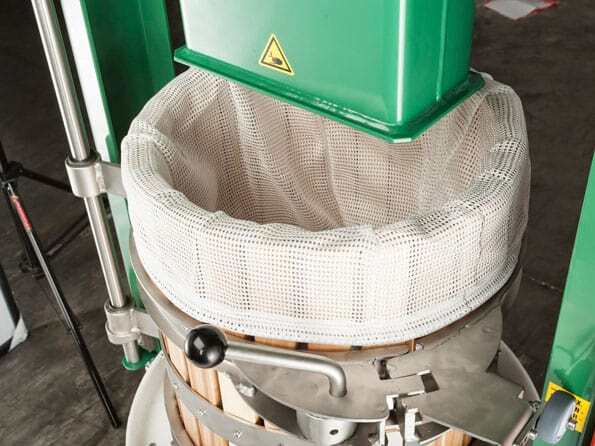

Scope of supply 1 press sack 100l, 3 sleeve inserts dia. 48cm, 3 press inserts in acacia wood dia. 48cm
