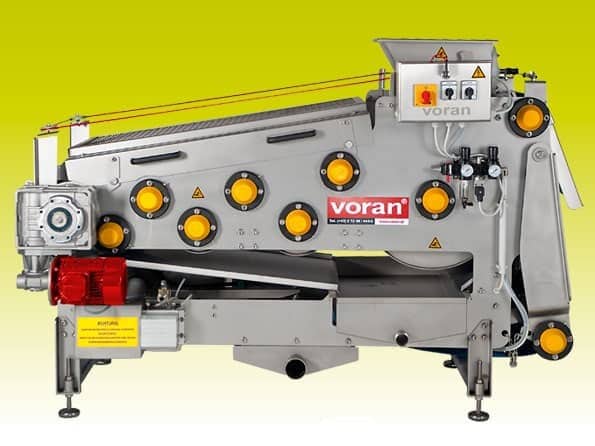

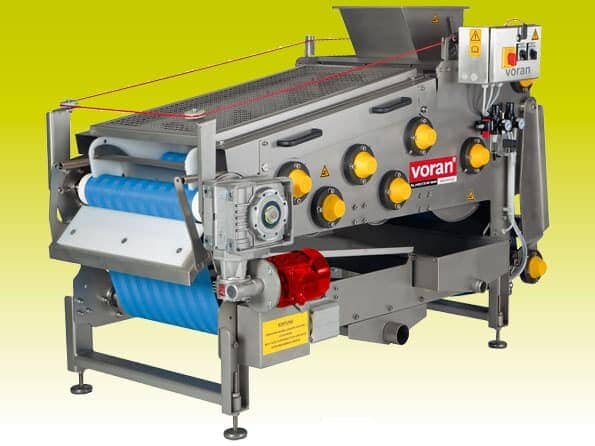

Belt press EBP 500

700 Kg/Hr Continuous Belt Press

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

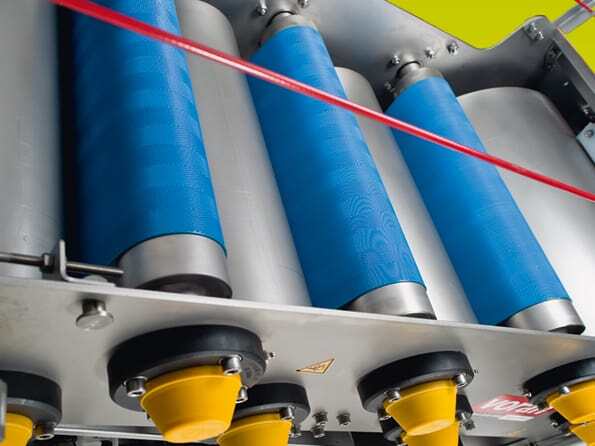

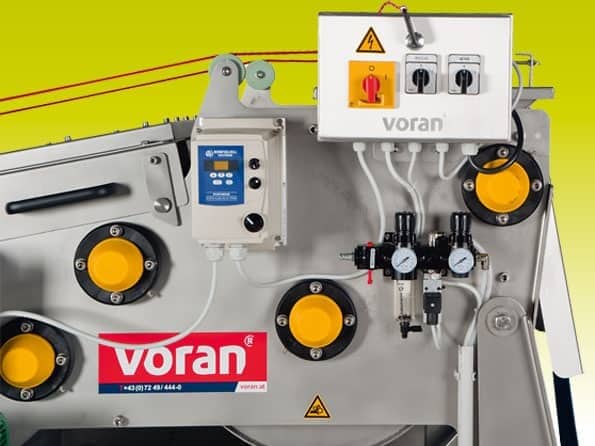

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.


Nominal rating kg/h 700 kg/h
Motor rating Drive motor 0,55 (0,75) washing system motor 0,12 (0,16) kW (PS)
Connected load Various Voltages Available
Electrical protection T.B.D.
Length 1940 mm
Width 1160 mm
Height 1300 mm
Discharge height 1300 mm
Belt width 500 mm
Strip length 6600 mm
Conveyor width 300 mm
Conveyor height 0-50 (9 levels) mm
Weight 520 kg
Material 1.4301 / AISI 304
Juice yield 75 %
Belt speed 1,4 – 3,6 (continuous) m/min
Water consumption for cleaning 3 l/min
Connection for waste water Ø76,1mm
Connection for juice outlet 1 1/2 “
Height juice outlet 300 mm
Height waste water drain 170 mm
Height pomace ejector 480 mm
Scope of supply High pressure cleaner, compressor

Additional Information


• Juice pan with screen • Belt cleaning brush used with Pears • Washing, Elevating and Milling machine
