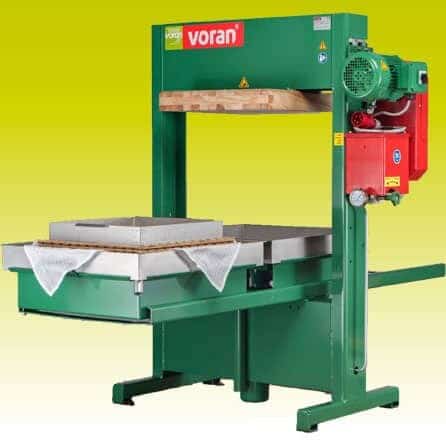

Packing press 100 P2 with two shift press cages

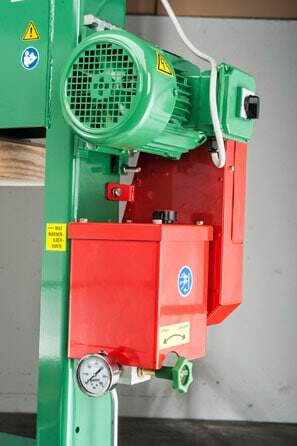

600 kg/h. Packing press with two moveable juice basins (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

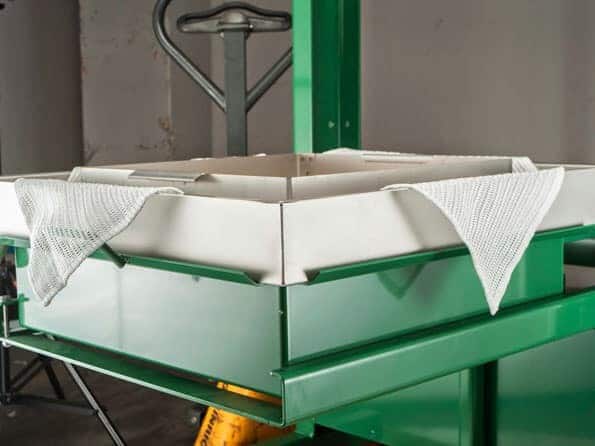

Packing press with two moveable juice basins (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 600 kg/h
Motor rating 1,5 (2,0) kW (PS)
Connected load 400V 50 Hz (3-phase)
Electrical protection 16 A
Length 1890 mm
Width 1210 mm
Height 1510 mm
Discharge height 1220 mm
Weight 300 kg
Material Packer frame and juice basin in 1.4301 / AISI 304
Press force 24 to
Press pressure 380 bar
Juice yield 75 %
Connection for juice outlet Ø30mm
Height juice outlet 420 mm

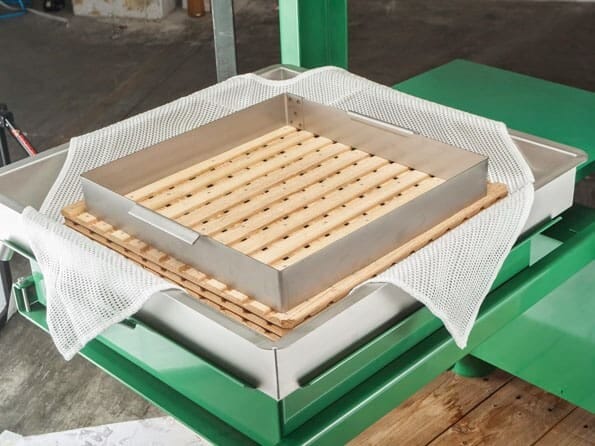

Scope of supply 18 press cloths 80×80 cm, 20 press inserts in acacia wood 50×50 cm
