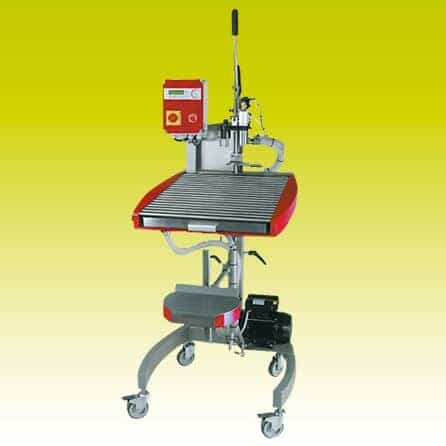

Bag-in-Box filling machine MBF1500

SKU 318 Categories , Tags ,

Manual Bag in Box filling system for hot filling of fruit and vegetable juice and cold-filling wine in 3, 5, 10 and 20 l standard Bags. A feed line buffer vessel is needed for hot filling.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Manual Bag in Box filling system for hot filling of fruit and vegetable juice and cold-filling wine in 3, 5, 10 and 20 l standard Bags. A feed line buffer vessel is needed for hot filling.

Nominal rating l/h 1500 (with 10l Bags) l/h
Electrical power 1 kW
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1000 mm
Width 700 mm
Height 1500 mm
Weight 80 kg
Material 1.4301 / AISI 304
Filling accuracy ± 0,5 %
Compressed air connection 6 bar
Scope of supply incl. cleaning adapter
