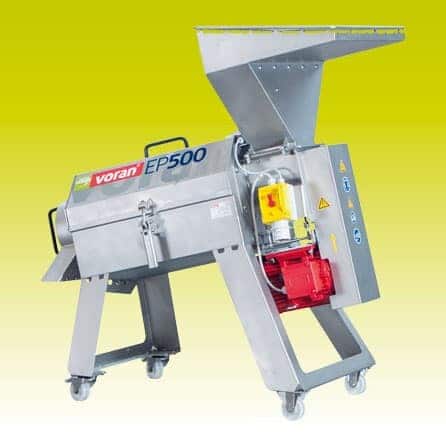

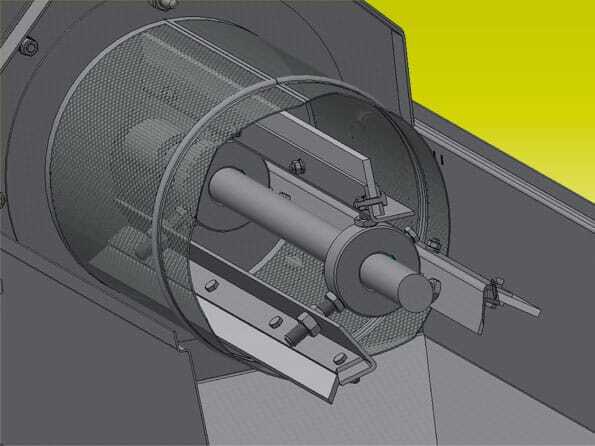

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.
For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.
De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.
| Nominal rating kg/h | up to 500 kg/h |
| Motor rating | 3,0 (4,0) kW (PS) |
| Connected load | 400V 50Hz (3~) |
| Electrical protection | 16 A |
| Length | 1190 mm |
| Width | 640 mm |
| Height | 1250 mm |
| Discharge height | 1250 mm |
| Weight | 110 kg |
| Material | 1.4301 / AISI 304 |
| Connection for mash Pumps | DN 65 AG |
| Height mash outlet | 340 mm |
| Height stone outlet | 380 mm |
