Packing press with rotary cage 180 P2

1200 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit. The machine is available with or without hydraulic lifting and lowering device.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit. The machine is available with or without hydraulic lifting and lowering device.

TECHNICAL DATA

Nominal rating kg/h 1200 kg/h
Motor rating 2,2 (3,0) kW (PS)
Connected load 400V 50Hz (3~)
Electrical protection 16 A
Length 2250 mm
Width 850 mm
Height 1870 mm
Discharge height 1380 mm
Weight 820 / 1020 kg
Material packing frame and juice basin in 1.4301 / AISI
Press force 50 to
Press pressure 320 bar
Juice yield 75 %
Connection for juice outlet 1 1/4″
Height juice outlet 420 mm

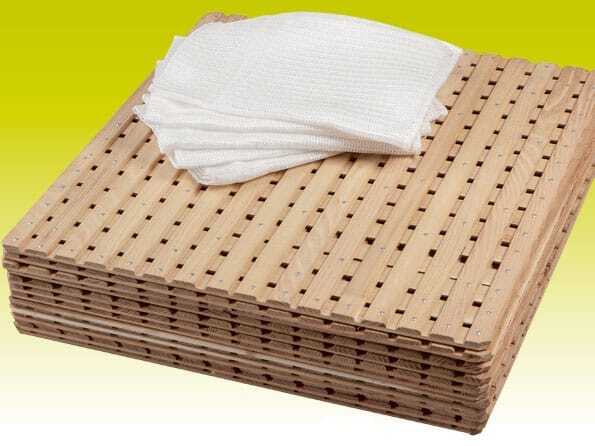

Scope of supply 22 press cloths 100x100cm, 24 press insets acacia wood 65x65cm
