Basket press 100K with centrifugal mill RM1,5

300 kg/h. Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

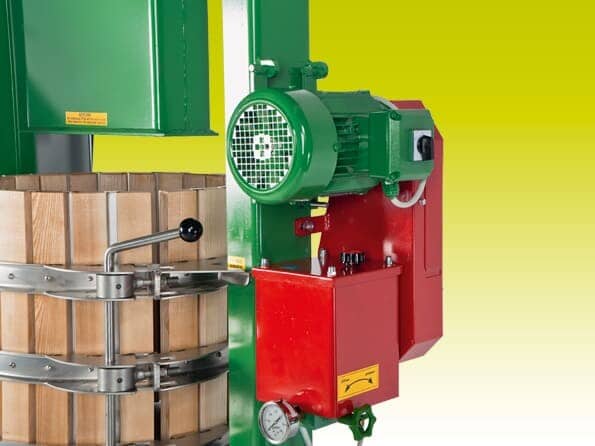

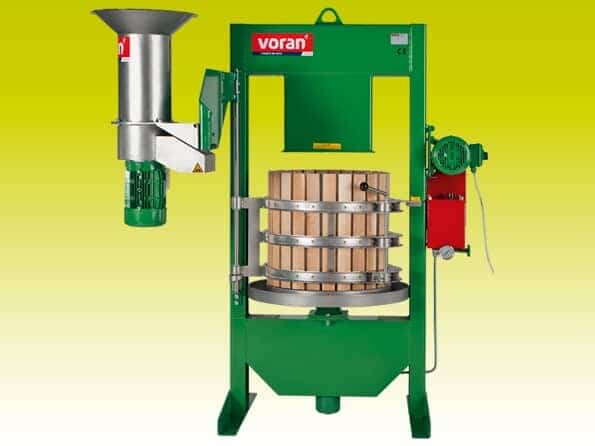

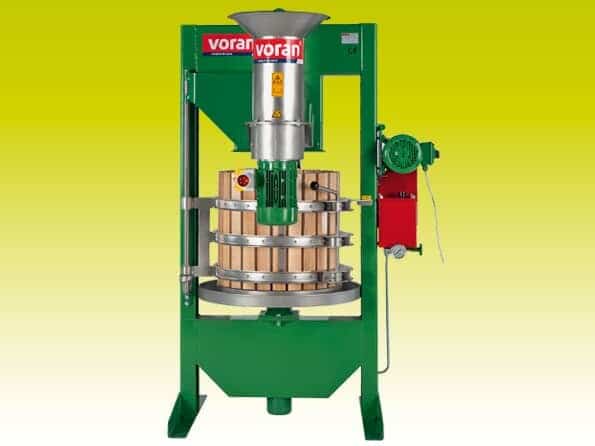

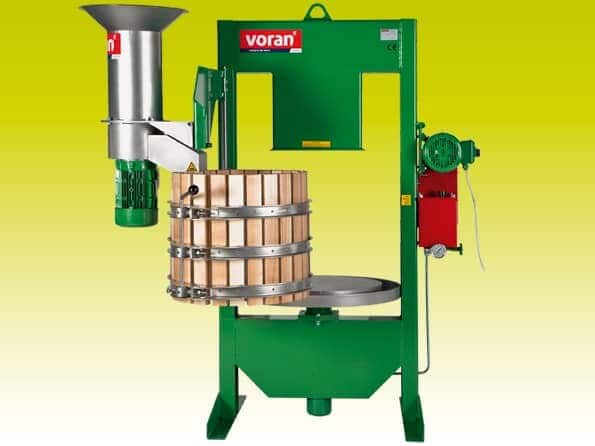

Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 300 kg/h
Motor rating Press 1,5 (2,0) mill 1,5 (2,0) kW (PS)
Connected load 400V 50 Hz (3-phase)
Electrical protection 16 A
Length 1180 mm
Width 1000 mm
Height 1910 mm
Discharge height 1900 mm
Weight 370 kg
Material Mill, basket and juice basin in 1.4301 / AISI 304
Press force 24,2 to
Press pressure 380 bar
Juice yield 75 %
Connection for juice outlet Ø30mm
Height juice outlet 525 mm
Height pomace ejector 585 mm
Scope of supply 1 press sack 100l, 3 sleeve inserts dia. 48cm, 3 press inserts in acacia wood dia. 48cm
