Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner.
For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

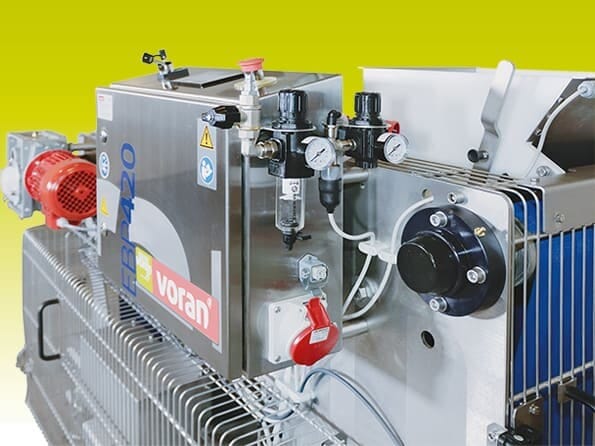

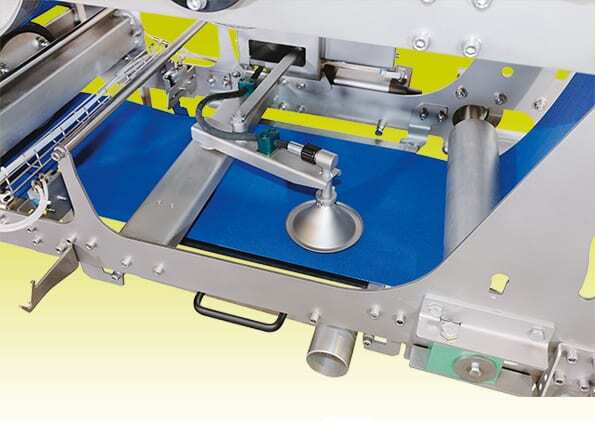

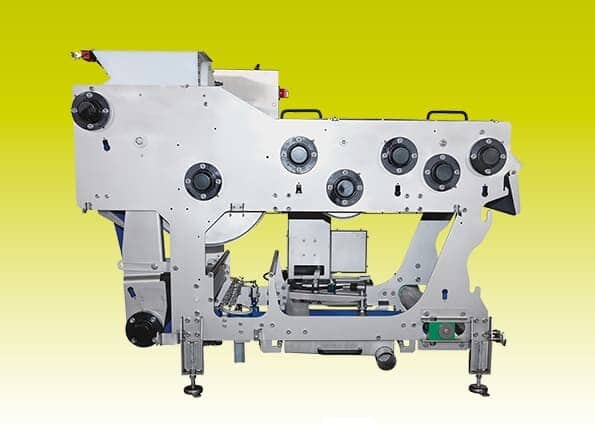

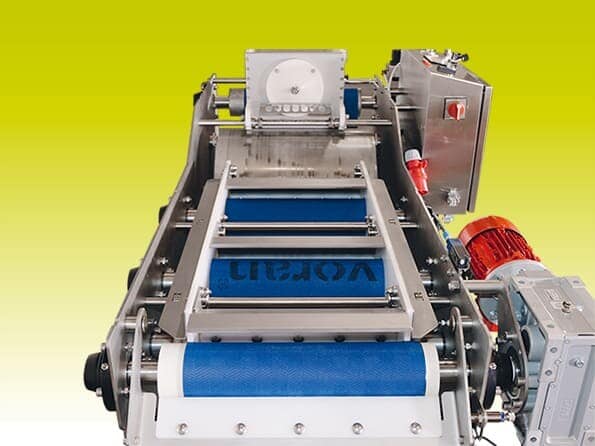

Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper.
| Scope of supply | high pressure cleaner, compressor |
| Height pomace ejector | 780 mm |
| Water consumption for cleaning | 12 l/min |
| Contact time | 0,4 – 1 min |
| Belt speed | 2,1 – 5,5 (continuous) m/min |
| Juice yield | 75 % |
| Material | 1.4301 / AISI 304 |
| Weight | 550 kg |
| Belt width | 420 mm |
| Discharge height | 1290 mm |
| Height | 1290 mm |
| Width | 1090 mm |
| Length | 1820 mm |
| Electrical protection | 16 A |
| Connected load | 400V 50Hz (3 phases) |
| Motor rating | Drive motor 0,75 (1,02) cleaning motor 0,37 (0,5) kW (PS) |
| Nominal rating kg/h | 600 kg/h |
| OPTIONS AVAILABLE | • Plastic bearing Ø 80 mm EBP420 EBP580 • Protecting cap closed EBP420 EBP580 • Shaft seal EBP420 EBP580 •Flange housing unit EBP420 EBP580 • Belt control valve EBP420 EBP580 • Screen belt EBP420 • Brush roller driven, on shop assembly EBP420 |
|---|
