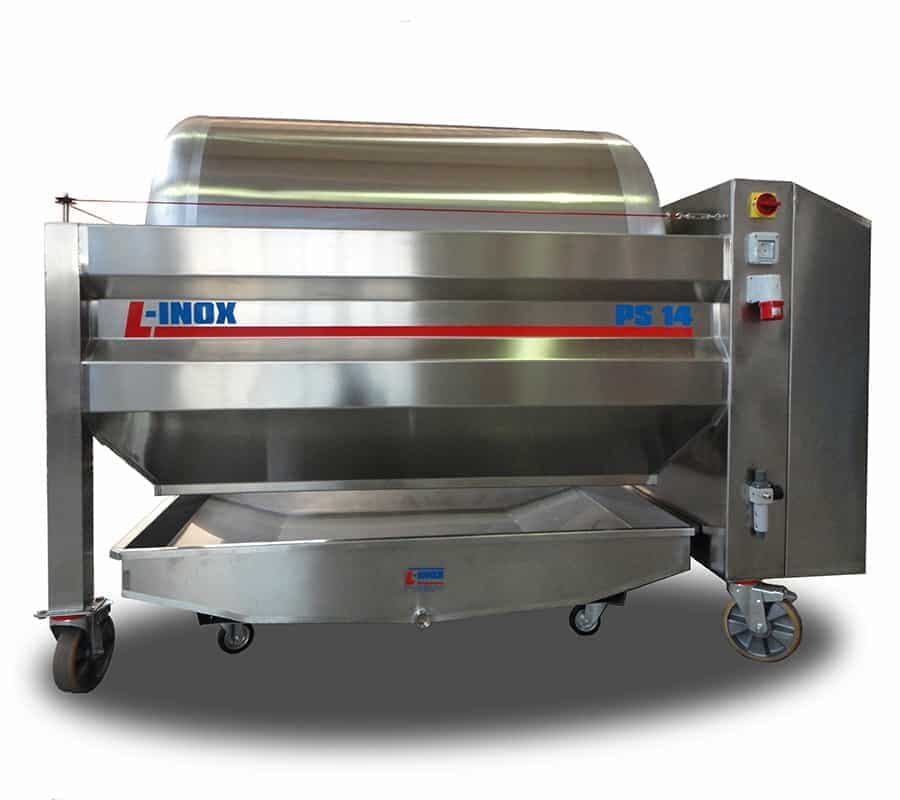

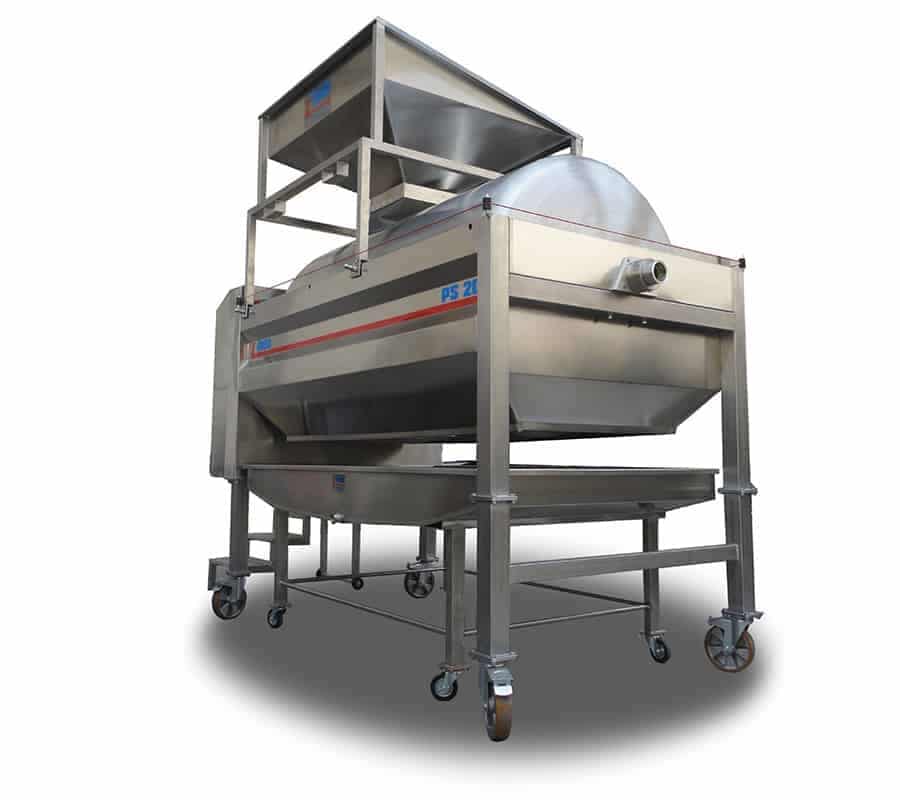

Horizontal Membrane Presses

BRAND:

Easy to use membrane fruit press. It has push button control box with 3 programs and connectors (outside of press-left side) for house compressor.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

These presses are very easy to use. It has push button control box with 3 programs and connectors (outside of press-left side) for house compressor.

Device has different system of operation: automatic, manual and third option is for fermentation program.

STANDARD EQUIPMENT

  • Push button control box
  • AISI 304 Steel
  • Juice collector
  • Safety Cord
  • 3 programs (manual, automatic and fermentation program)
  • Connection for house compressor
  • Central filling must from 1200l on. Other volume on request as additions/ equipment.
  • Filling / emptying doors: 1 doors (500l – 1400l)
  • Mains Supply voltage 380 V/50 hz-3 phase. Available also 1 phase or 60HZz

as additional equipment.

  • Blower
  • Max pressure 1,5 bar
  • External finish scotch brite
  • Tablet with technical informations
ADDTIONAL OPTIONS
  • Closed or open (half drum perforated)-tank
  • Additional closed doors for vinification
  • Central filling for small presses
  • lnox valve for juice collector in all connections available
  • Mains supply voltage 220 w
  • Leg extensions
  • Hopper
  • Platform attached to press
  • Level switch
  • Perforated plate before exiting the juice from the collector
  • Pneumatic valve for central filling in all connections available
  • Press prepaire for operation on 1 phase (500- 1400 I}



TECHNICAL DATA

VOLUME MAX PRESSURE (bar) POWER (kW) DRUM DIAM (mm)
500 l 1.5 0.75 800
650 l 1.5 0.75 1000
850 l 1.5 0.75 1250
1000 l 1.5 0.75 1500
