Kiesel B Series

BRAND:

Kiesel
SKU 153 Category

Kiesel model series B Pumps were specially developed for fruit processing. They are equally suitable for the movement of mash as well as must, wine & fruit juices.

kiesel

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

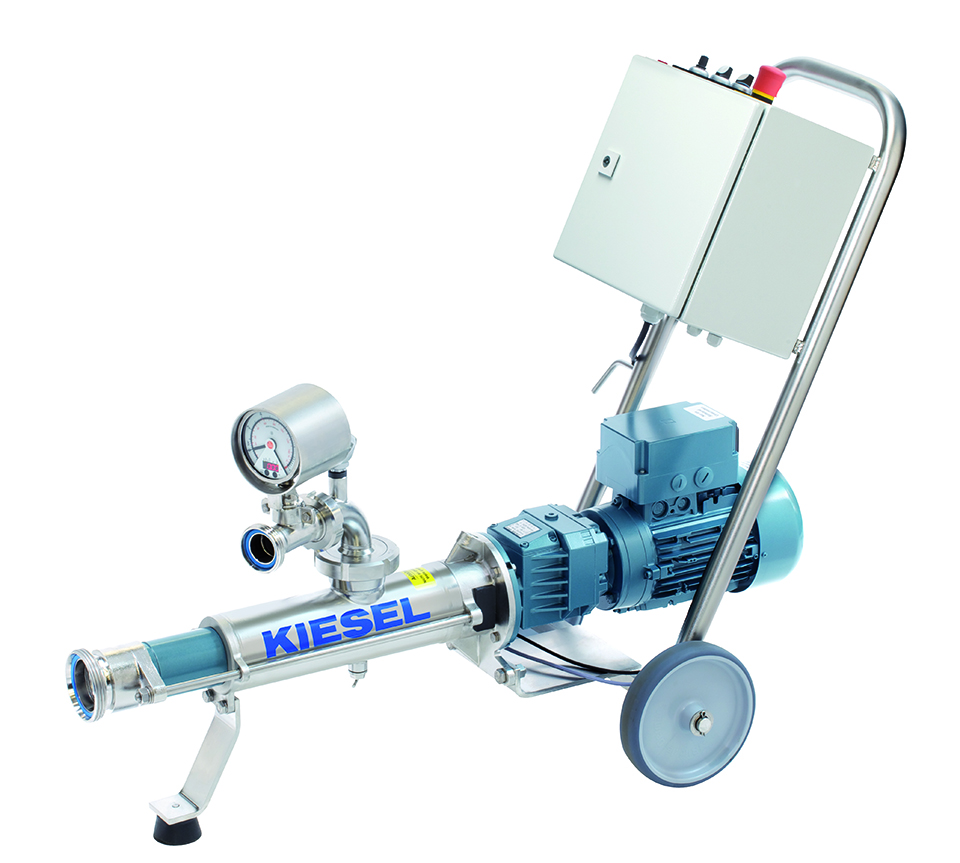

Kiesel B Series

Kiesel model series B Pumps were specially developed for fruit processing. They are equally suitable for the movement of mash as well as must, Yeast, wine & fruit juices.

Characteristics

  • Gentle handling: with mash no release of turbid particles and tanning
  • Hollow rotors with extremely high eccentricity = low destruction of fruit cores
  • Uniformity, pulsation-free conveyance
  • Self-priming
  • Optional hopper with feeding screw for mash transfer
  • 2″ or 3″ DIN or TC connections
  • Max temperature – 100°C

KIESEL Eccentric Screw Pumps are made of stainless-steel, 304L material. This includes the casing, chassis, shaft, feeding screw, joint pieces and special hollow rotor.

The Pumps run completely vibration-free, due to the light weight construction. The speed is regulated with a frequency converter, in order to achieve a gentle transfer, without shearing the transported material or causing an increase of the solids concentration.

The joints of the Pumps are designed for easy cleaning. The Pumps can run in both directions.

Type SP 05 SP 06 SP 10 SP 12
Max. m3 /hr 8,1 16 20 30
Length in mm approx. 1030 1330 1800 1850
Width in mm approx. 460 500 500 500
Height in mm approx. 730 880 880 910
