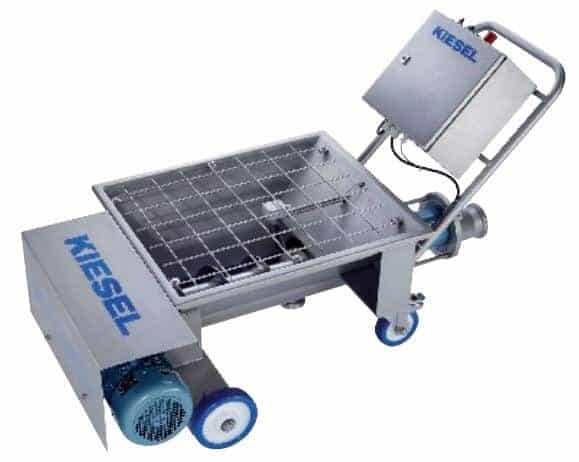

Kiesel FTF Series Progressive Cavity Must/Mash Pumps
Kiesel Flat Mash Pumps FTF are specially designed for use under destemming machines, graters or mills.
Transported Material
KIESEL Flat Mash Pumps FTF are made of stainless-steel, 304L material. This includes the hopper casing, chassis, shaft, feeding-screw, joint pieces and special throw rotor.
The Pumps run completely vibration-free, due to the light weight construction. The speed is regulated with a frequency converter, in order to achieve a gentle transfer, without shearing the transported material or causing an increase of the solids concentration.
The joints of the Pumps are designed for ease cleaning. The Pumps can run in both rotation directions for cleaning.
| Type | SP 12 FTF | SP 16 FTF | SP 20 FTF | SP 24 FTF | SP 30 FTF |
| Total length in mm approx. | 1400 | 1660 | 2010 | 2180 | 2330 |
| Hopper height in mm approx. | 470 | 480 | 540 | 680 | 795 |
| Hopper width in mm approx. | 850 | 1150 | 1270 | 1100 | 1100 |
| Hopper length in mm approx. | 700 | 850 | 1100 | 1100 | 1100 |
| Capacity max. | 11 m3/hr | 25 m3/hr | 50 m3/hr | 75 m3/hr | 125 m3/hr |
